ADJ PIX113

Overview

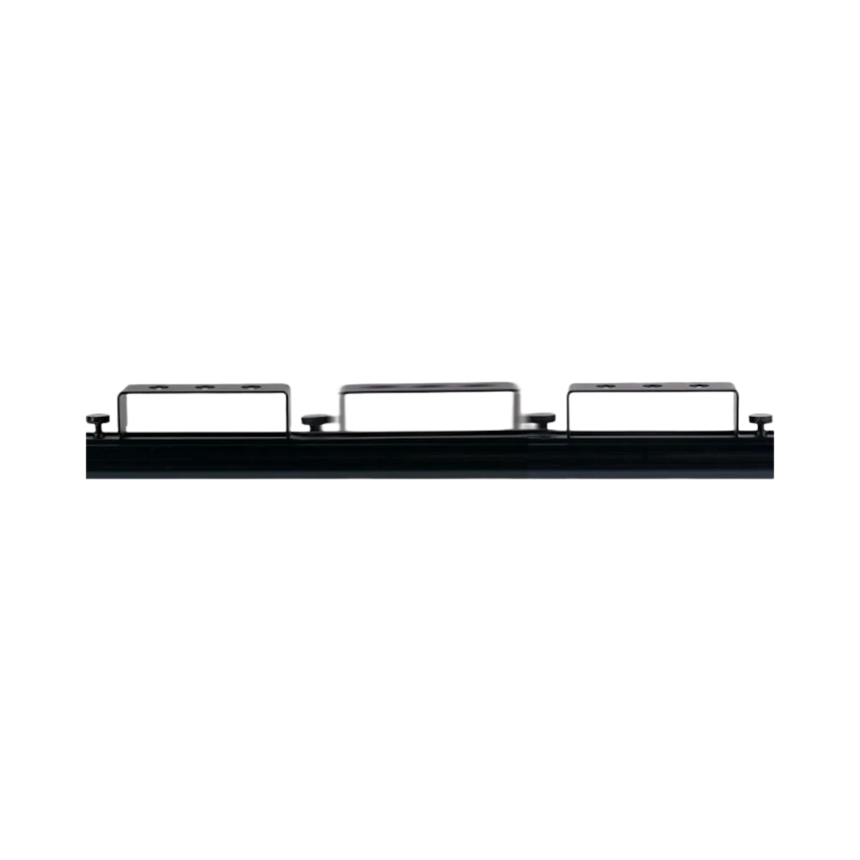

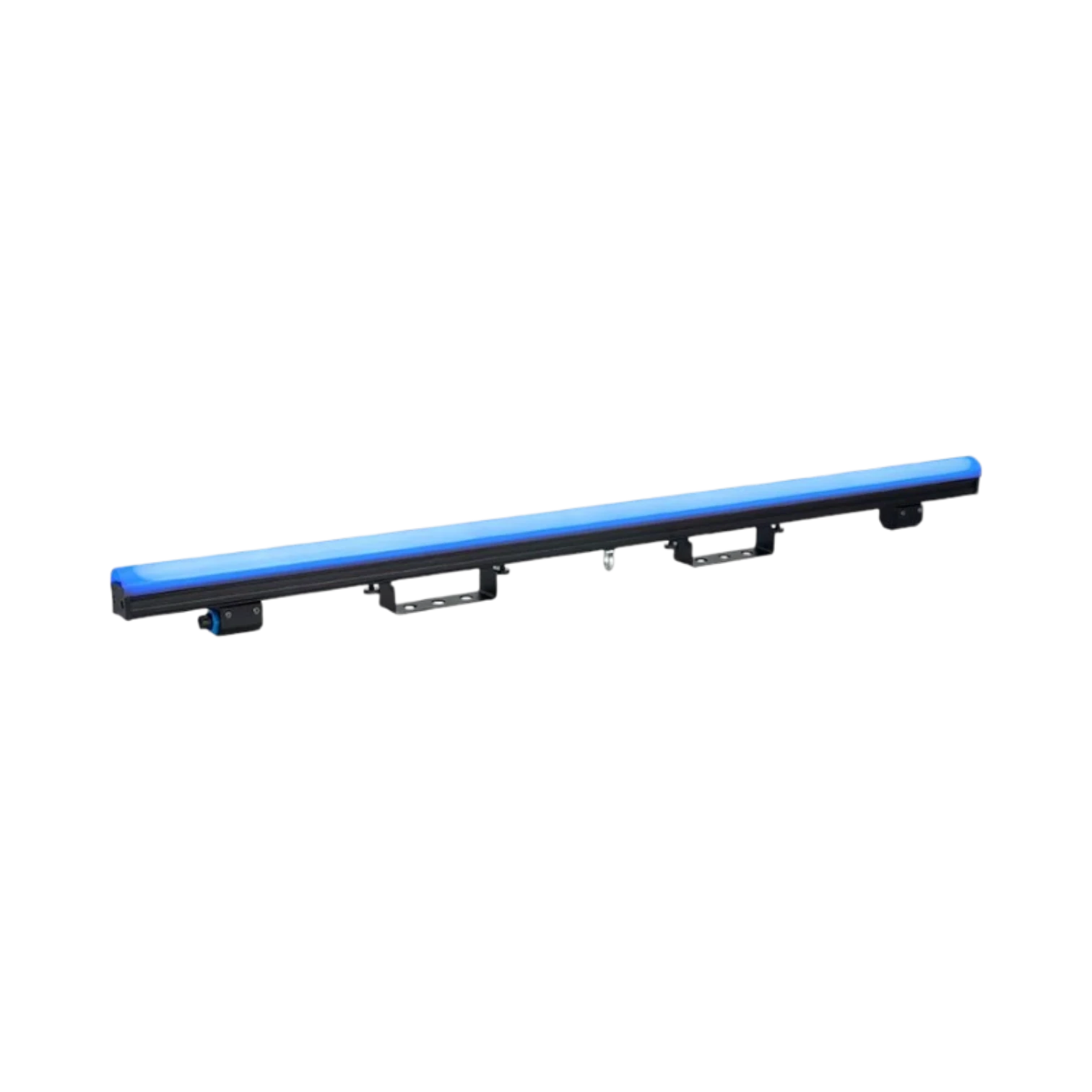

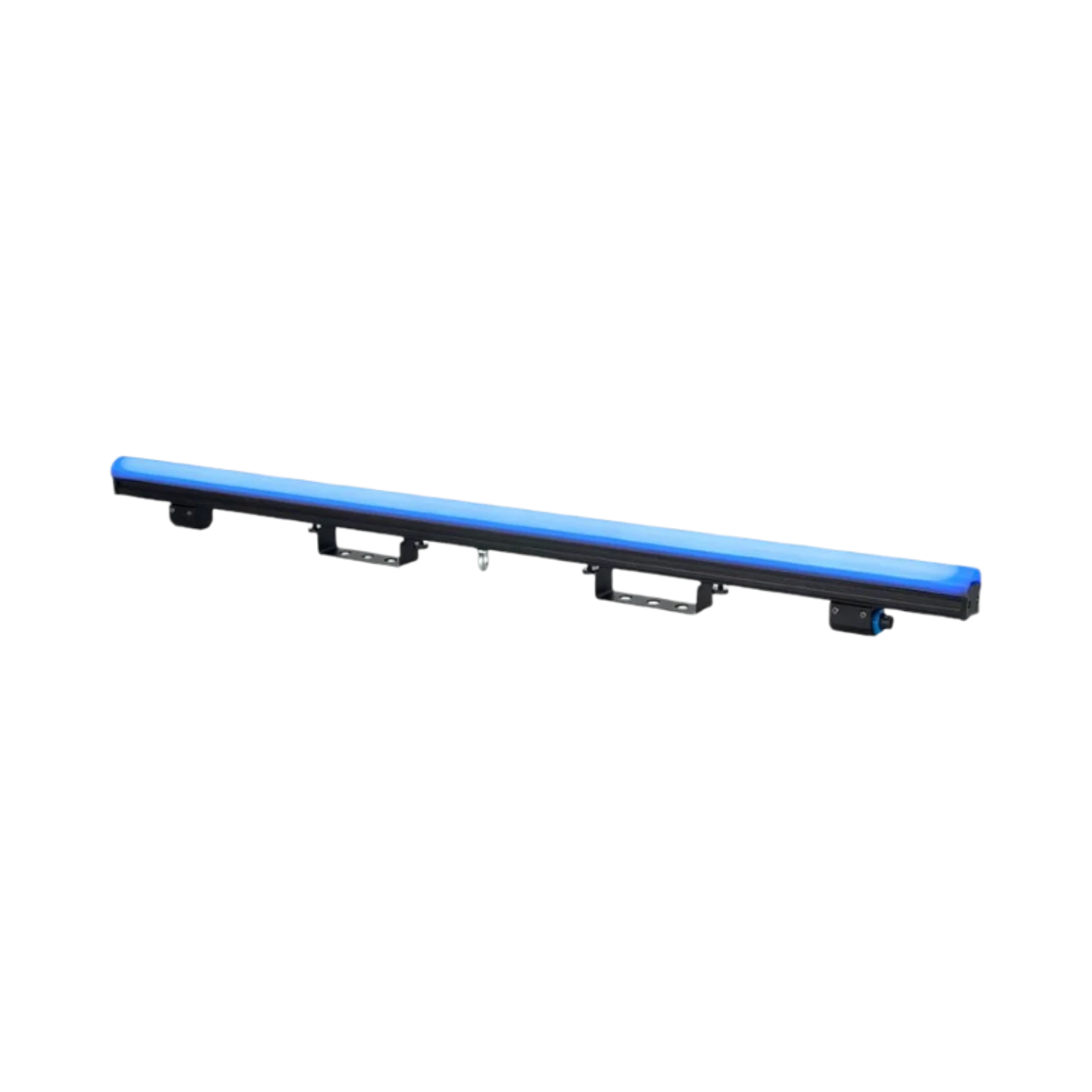

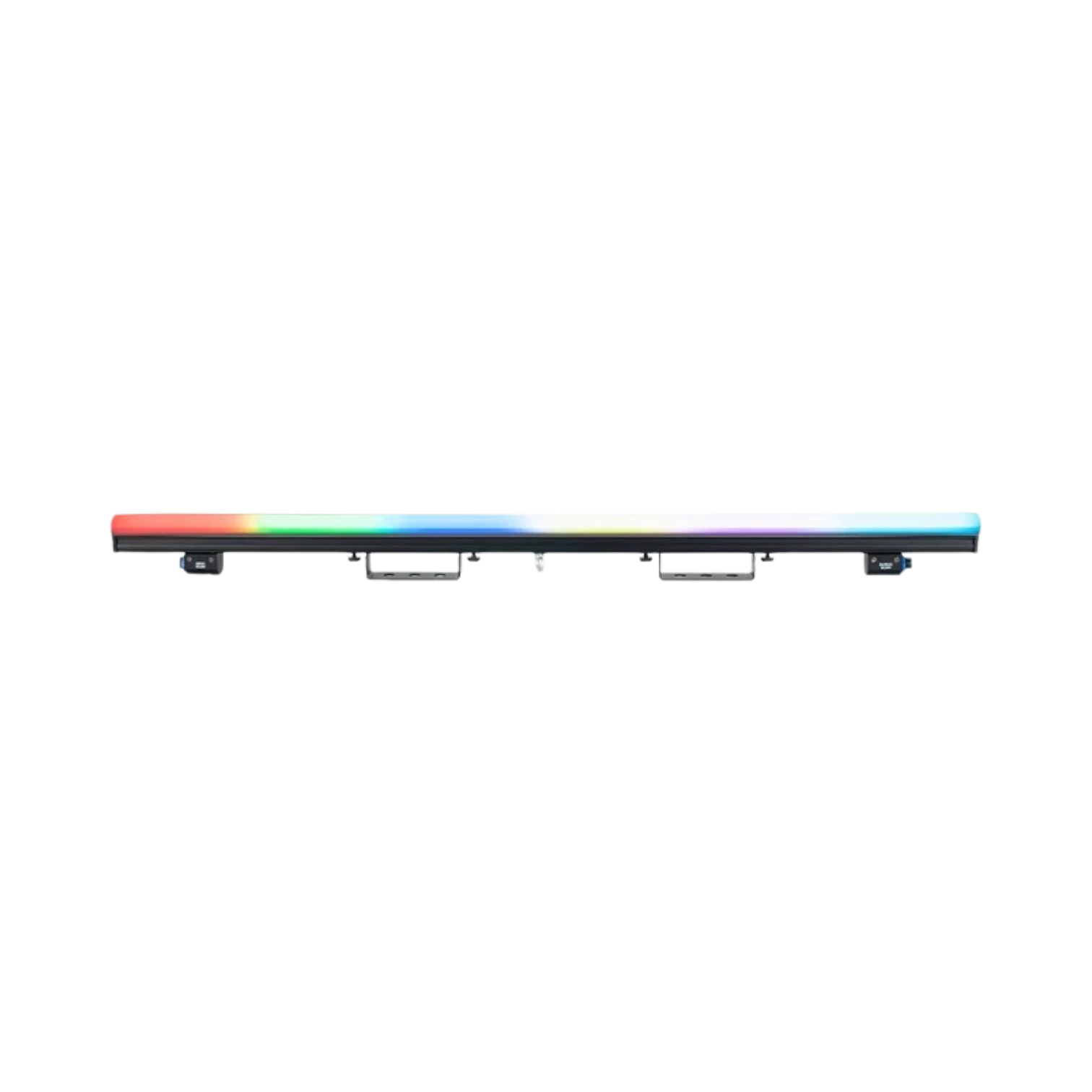

The ADJ PIX113 is a 1-meter RGB LED pixel strip designed to deliver precise and vibrant lighting effects for stage productions, fixed venues, and creative installations. Featuring 60 tri-color RGB SMD LEDs spaced 16.5 mm apart, it produces clear and evenly distributed dots of light that maintain their definition both up close and from a distance. With 8-bit color control per LED and a high 44,000 Hz PWM dimming rate, this strip ensures smooth color transitions and flicker-free performance, making it ideal for environments involving cameras and streaming.

Key features

• 60 tri-color RGB LEDs arranged for detailed pixel mapping and vivid color effects
• 16.5 mm pixel pitch that balances visual clarity with smooth gradients
• Wide 120° by 120° viewing angle to reach audiences from multiple directions
• 8-bit per color control enabling smooth fades and rich color mixing without visible steps
• High-frequency 44,000 Hz PWM dimming to eliminate flicker on camera recordings

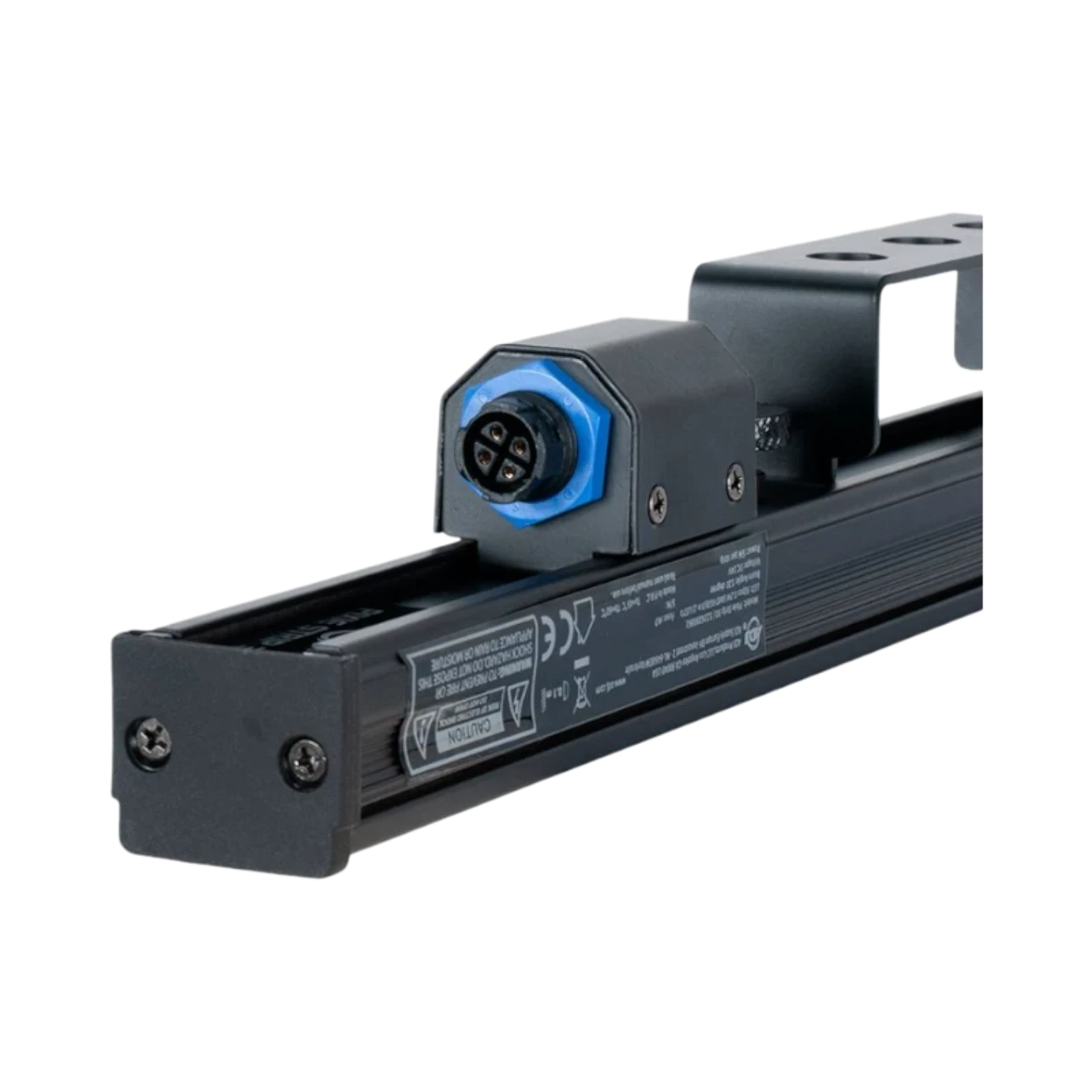

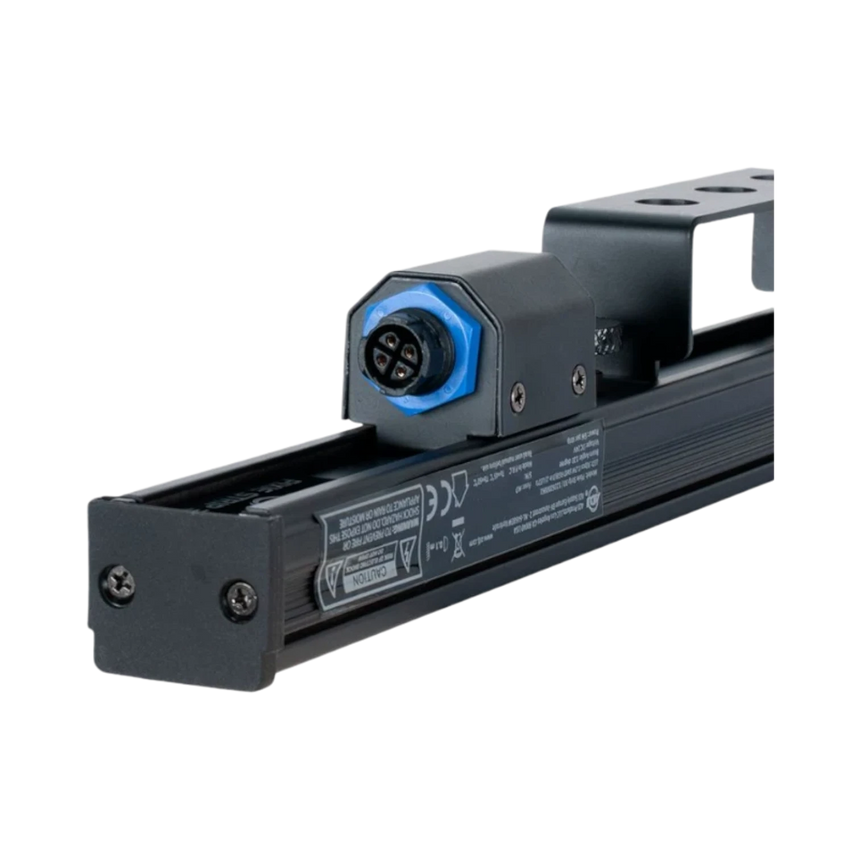

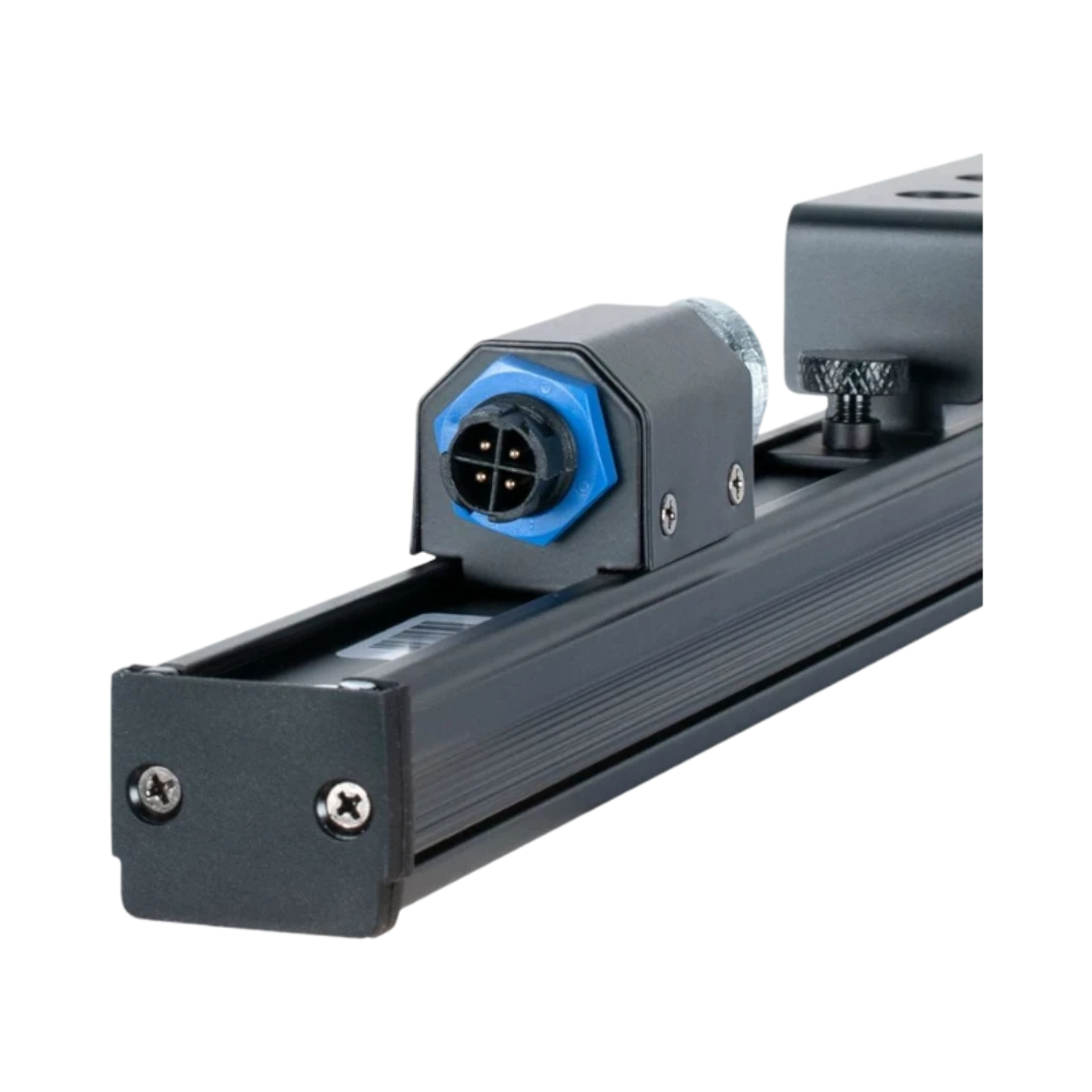

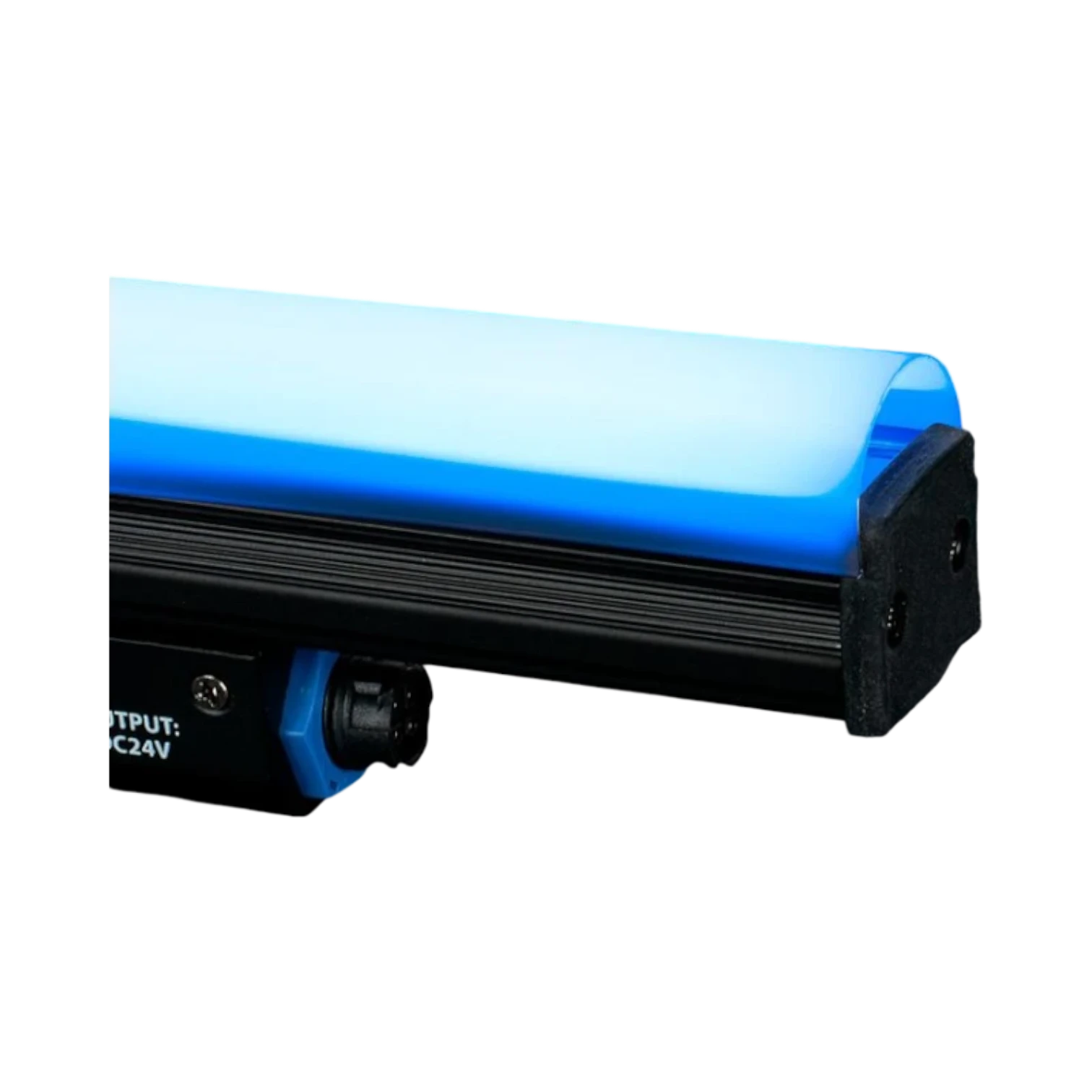

• Standard 4-pin power and data connectors at both ends for fast and easy daisy-chaining of multiple strips

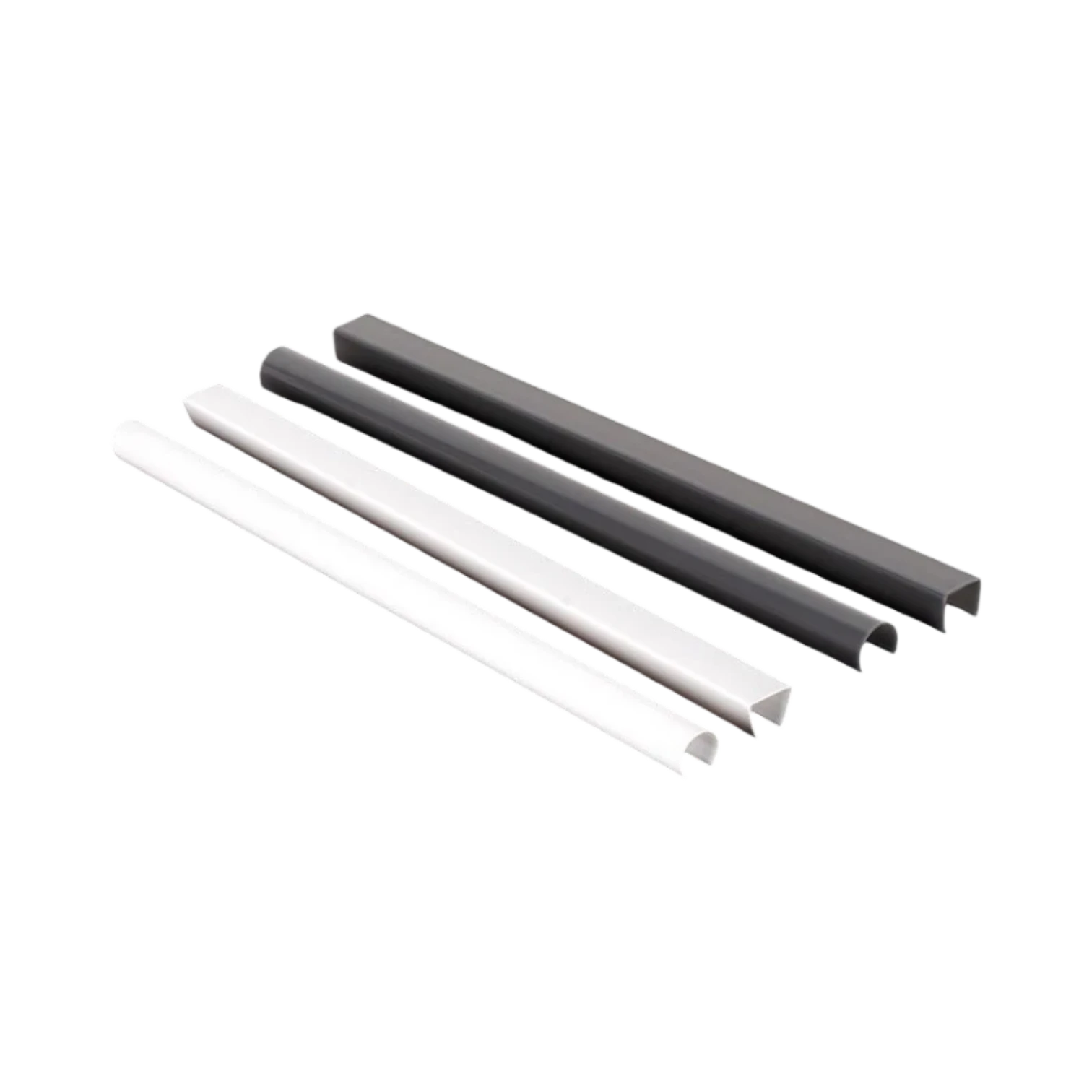

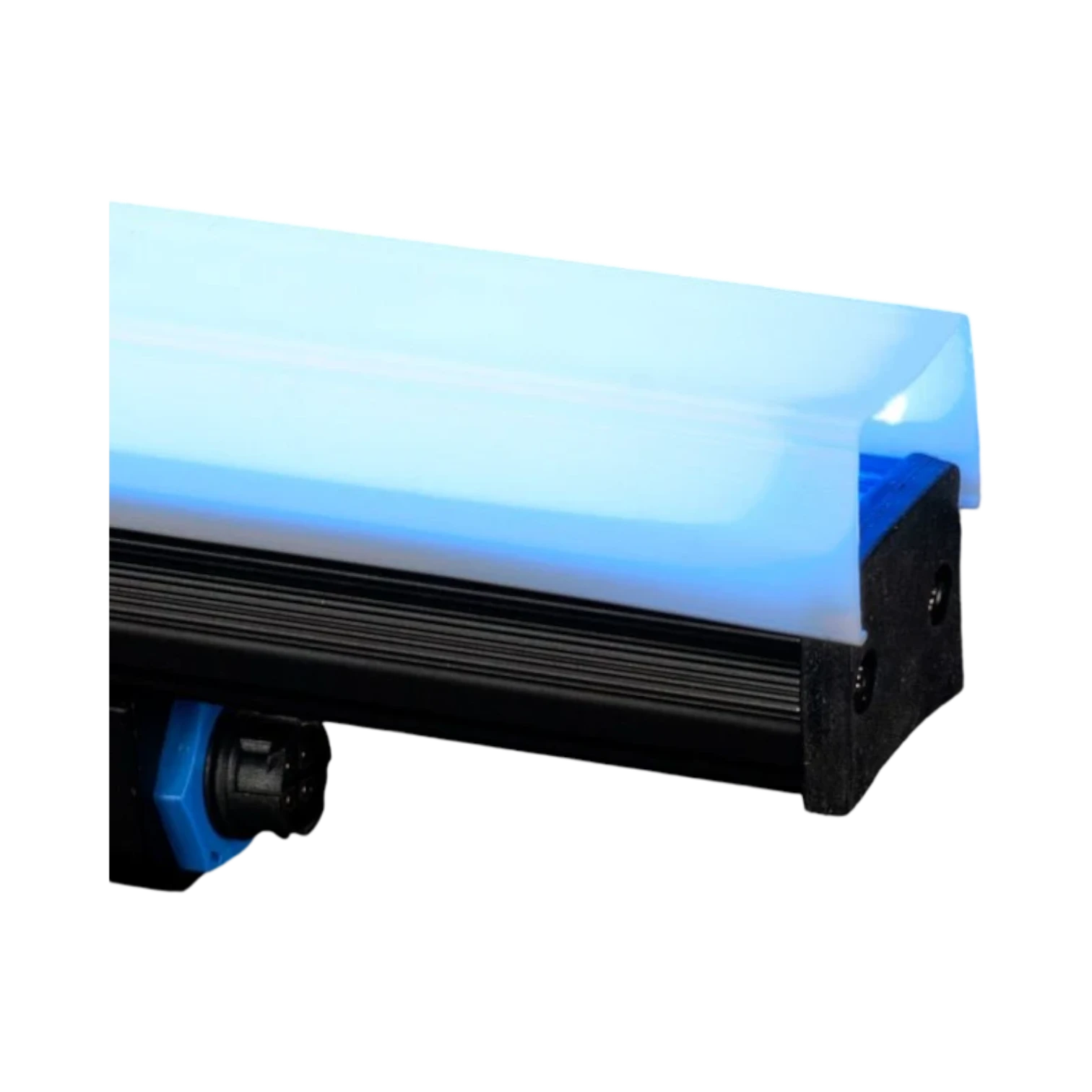

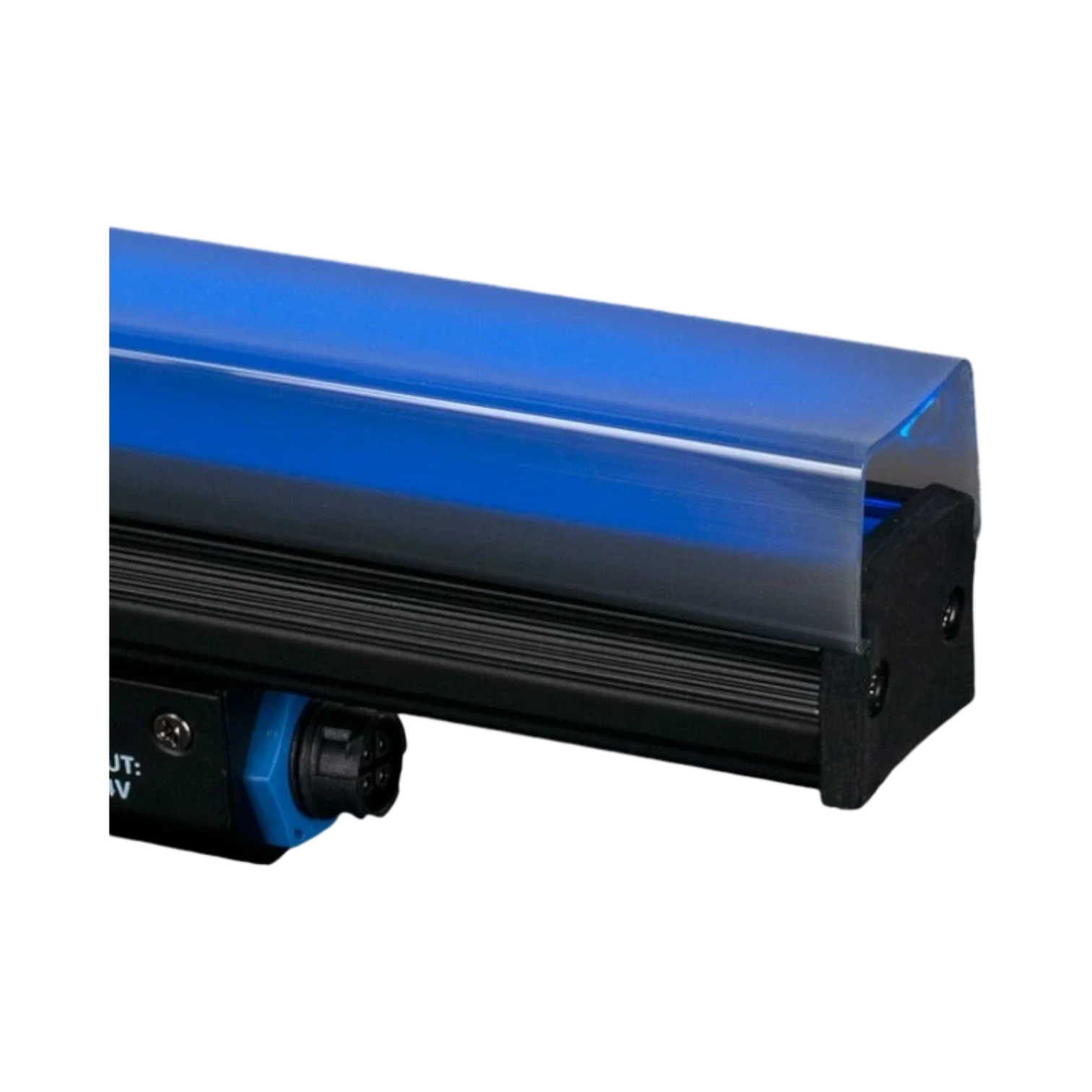

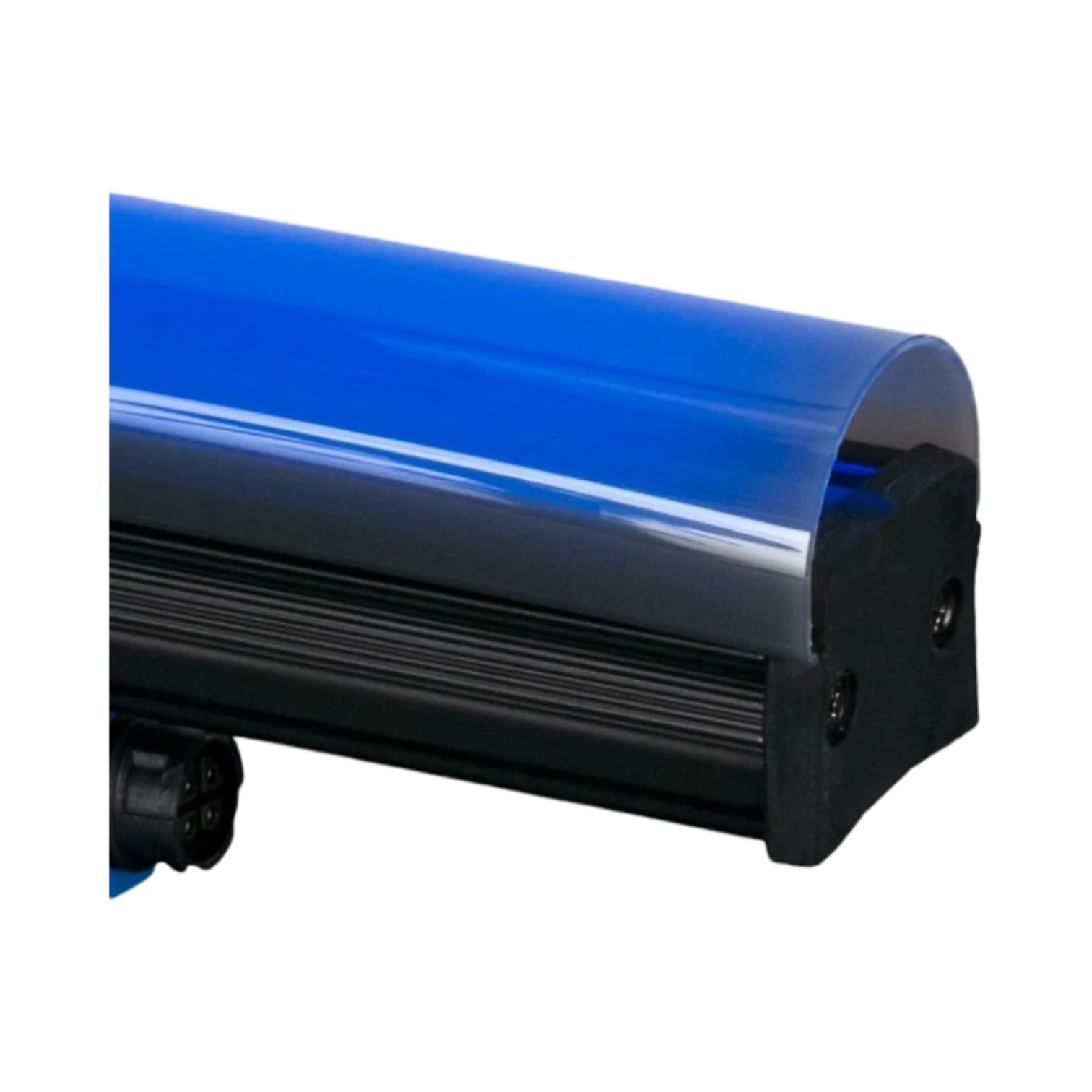

• Includes frosted and smoked lens covers to customize diffusion and achieve either soft or punchy lighting effects
• Low power consumption of 12 watts, supporting energy-efficient setups and larger installations

Key specs

• LED count: 60 tri-color RGB SMD LEDs
• Strip length: 1 meter
• Pixel pitch: 16.5 mm
• Viewing angle: 120° horizontal by 120° vertical
• Color control: 8-bit per color channel
• PWM dimming frequency: 44,000 Hz
• Power consumption: maximum 12 watts
• Connectors: 4-pin power and data input/output

Connectivity and compatibility

The strip’s 4-pin connectors allow quick linking of multiple units to create longer runs or complex pixel-mapped designs without the need for special tools or adapters. This makes it straightforward to integrate into existing lighting control systems that support pixel mapping. Its flicker-free dimming is especially suited for broadcast environments, streaming studios, and any application where camera compatibility is critical.

Installation and setup

Installation is streamlined thanks to the standard connectors at both ends, enabling fast daisy-chaining and flexible layout options. The included frosted and smoked lens covers slide on easily, giving you control over the light diffusion to match the mood or design intent. Its low power draw helps keep electrical demands manageable, which is beneficial for both touring productions and permanent installations.

Ideal uses and environments

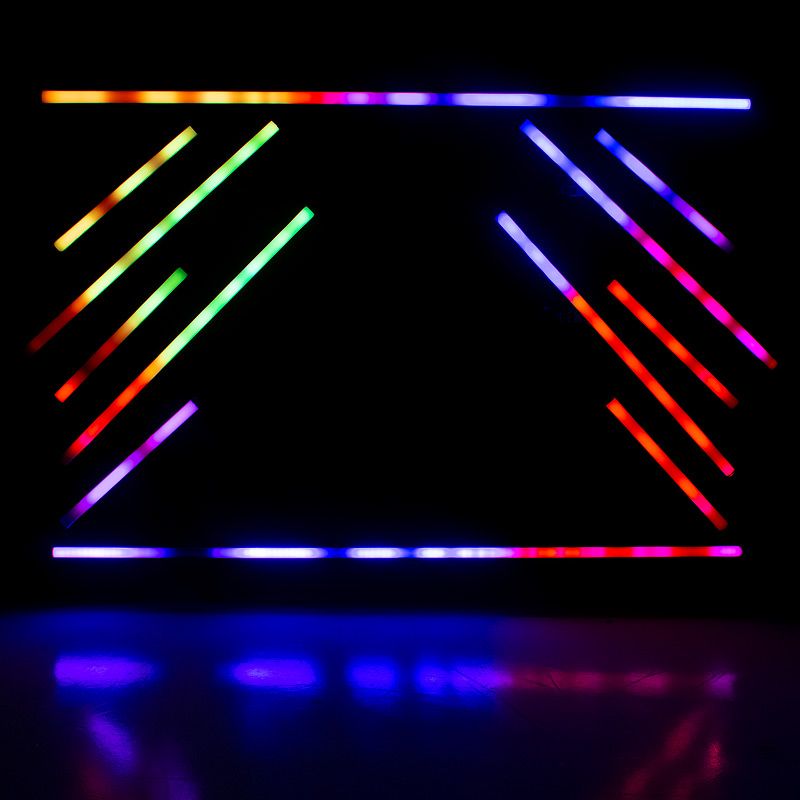

This pixel strip works well in a variety of settings, from touring stage productions requiring reliable pixel mapping to retail and architectural displays that benefit from subtle or dynamic color accents. Its combination of smooth color control, wide viewing angle, and camera-friendly dimming makes it a strong choice for creative professionals who need versatile and visually consistent lighting effects in both live and recorded environments.
