Tripp Lite PDUMV30HV

Overview

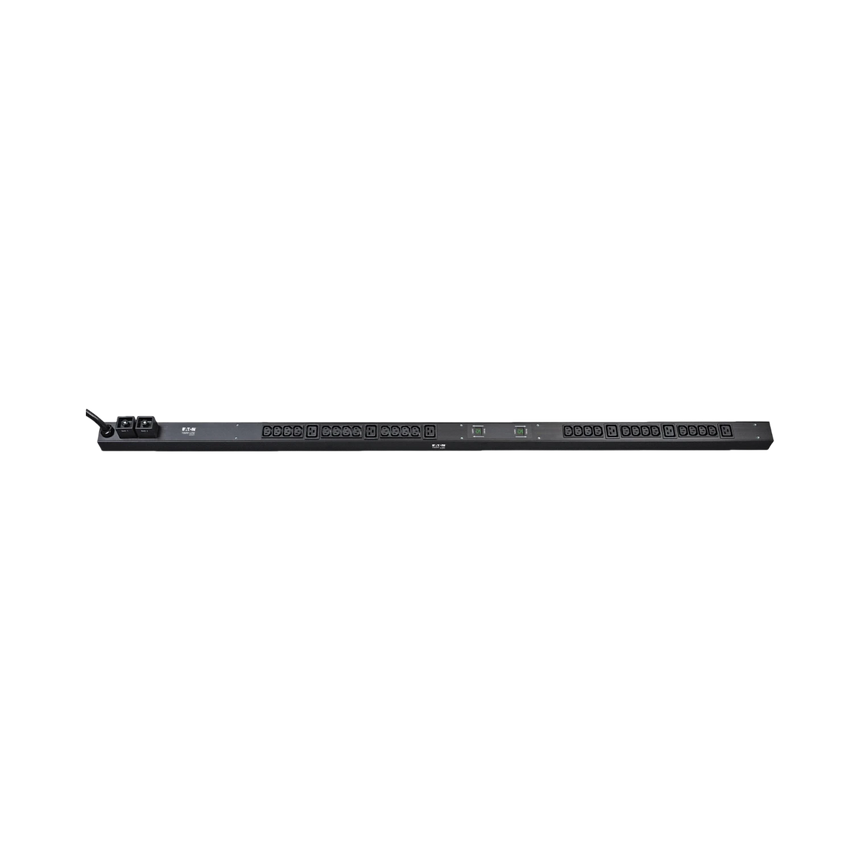

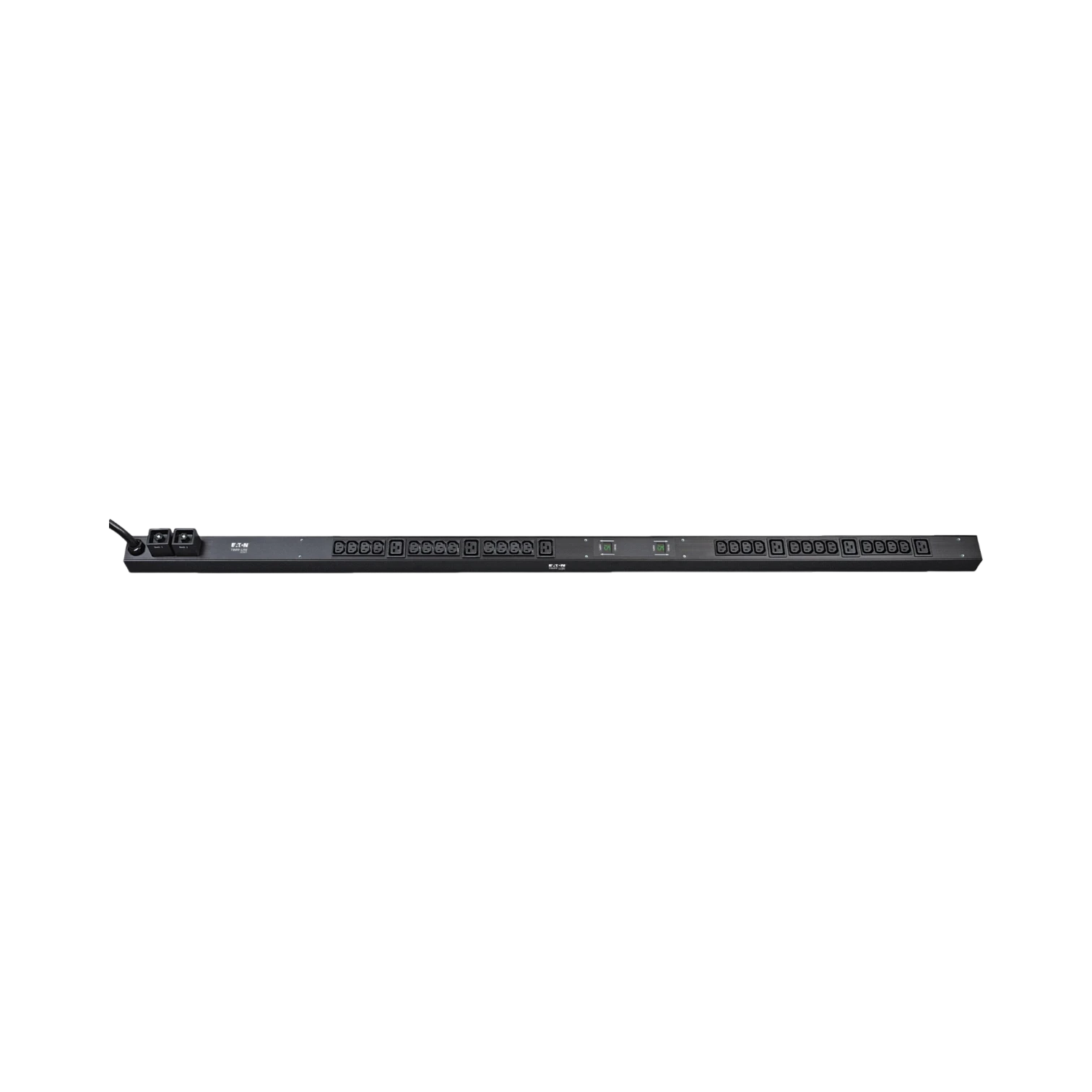

The Tripp Lite PDUMV30HV is a vertical power distribution unit designed to deliver 5.5 kW of reliable single-phase power at 208 or 230 volts to rack-mounted equipment. It features 30 rear-facing outlets, including six C19 and twenty-four C13 receptacles, to support a variety of devices from high-draw servers to everyday rack components. With two digital meters displaying real-time current for each load bank, it helps you monitor power usage and avoid overloads effectively.

Key features

• Provides 5.5 kW of power suitable for high-density rack environments requiring 208/230 V single-phase supply
• Thirty outlets with a mix of six C19 and twenty-four C13 connectors accommodate diverse hardware without extra adapters
• Two separate load banks with independent breakers allow for balanced power distribution and isolate issues without affecting the entire rack
• Front-panel digital meters offer real-time current monitoring in amps, enabling quick assessment of circuit load and preventing downtime

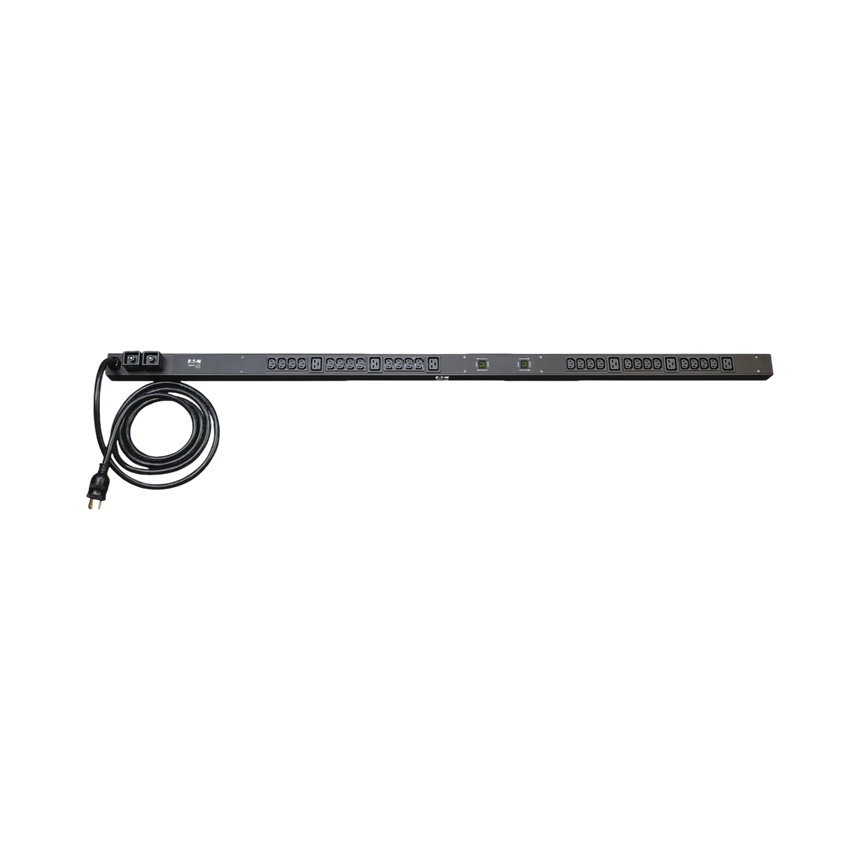

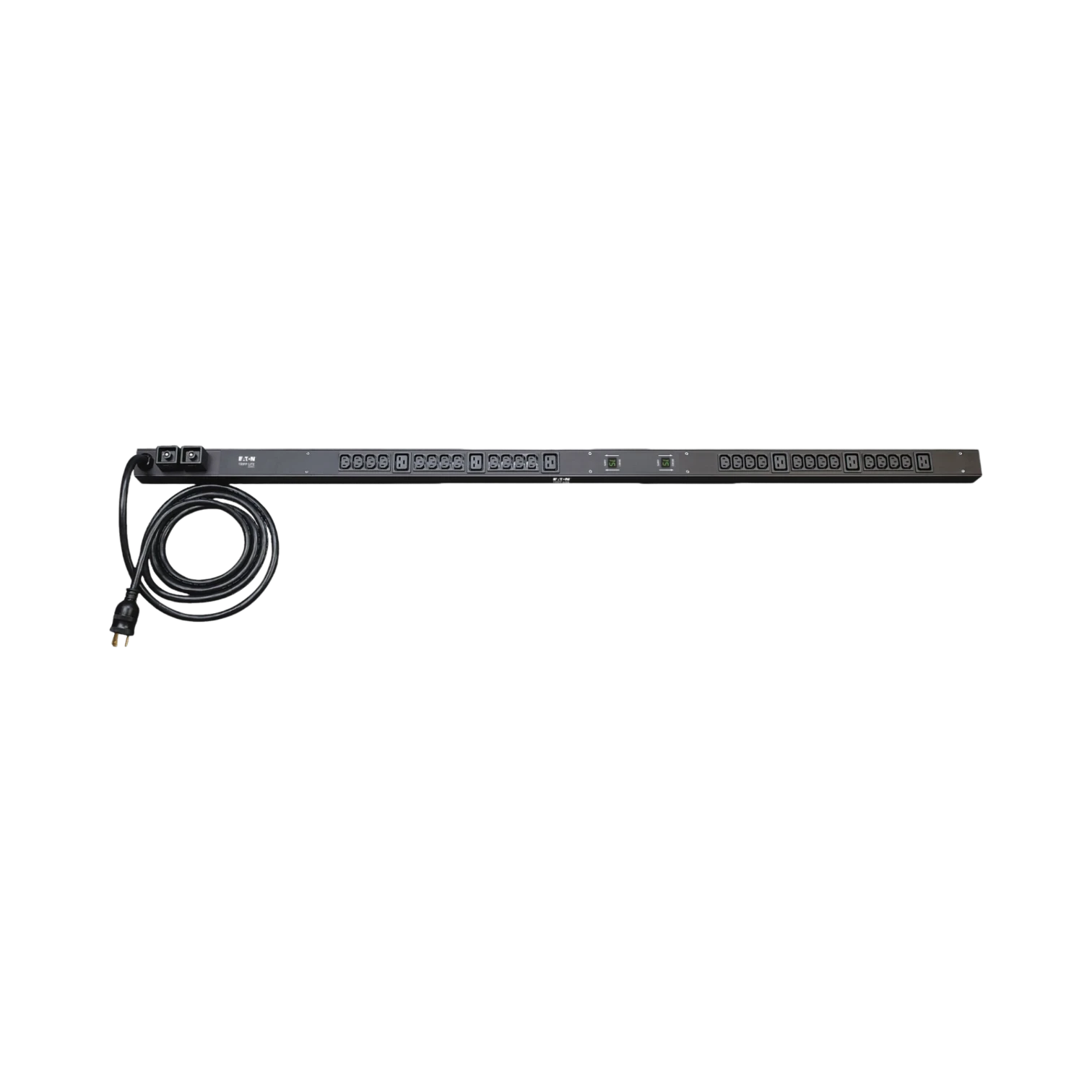

• NEMA L6-30P input plug on a 10-foot cord reaches distant power sources, allowing flexible installation locations
• Plug-lock inserts secure connections to prevent accidental disconnections during maintenance or adjustments
• 0U vertical rackmount design saves valuable rack space by mounting in the side channel
• Toolless mounting hardware simplifies installation without the need for additional tools
• RoHS compliant construction supports environmental sustainability goals
• Backed by a two-year limited warranty for added reliability and peace of mind

Key specs

• Power capacity: 5.5 kW
• Voltage: 208/230 V single-phase
• Outlets: 30 total (6 C19, 24 C13)
• Input plug: NEMA L6-30P
• Cord length: 10 feet
• Form factor: 0U vertical rackmount
• Load banks: 2 independent with separate breakers
• Digital meters: 2 front-panel current meters (amps)
• Compliance: RoHS
• Warranty: Two-year limited

Connectivity and compatibility

This power distribution unit is designed to integrate seamlessly into racks housing a variety of equipment, from blade servers and large network switches to standard rack components. The combination of C19 and C13 outlets supports devices with different power requirements, reducing the need for adapters and simplifying cable management. The NEMA L6-30P input plug ensures compatibility with common 208/230 V power sources found in data centers and labs.

Installation and setup

The PDUMV30HV installs easily in the side channel of standard racks using the included toolless mounting buttons, eliminating the hassle of searching for screws or tools. Its 0U vertical design preserves valuable rack space for other equipment. The 10-foot power cord provides flexibility to reach distant power outlets or overhead busways, allowing you to position the PDU exactly where it is most convenient for your setup.

Ideal uses and environments

This PDU is well suited to data centers, server rooms, and laboratory environments where reliable, high-capacity power distribution is critical. It supports high-density racks with mixed equipment types and helps prevent downtime through real-time load monitoring and independent circuit protection. IT managers and technicians will appreciate its space-saving design and secure connections, making it a strong choice for professional installations requiring dependable power management.
