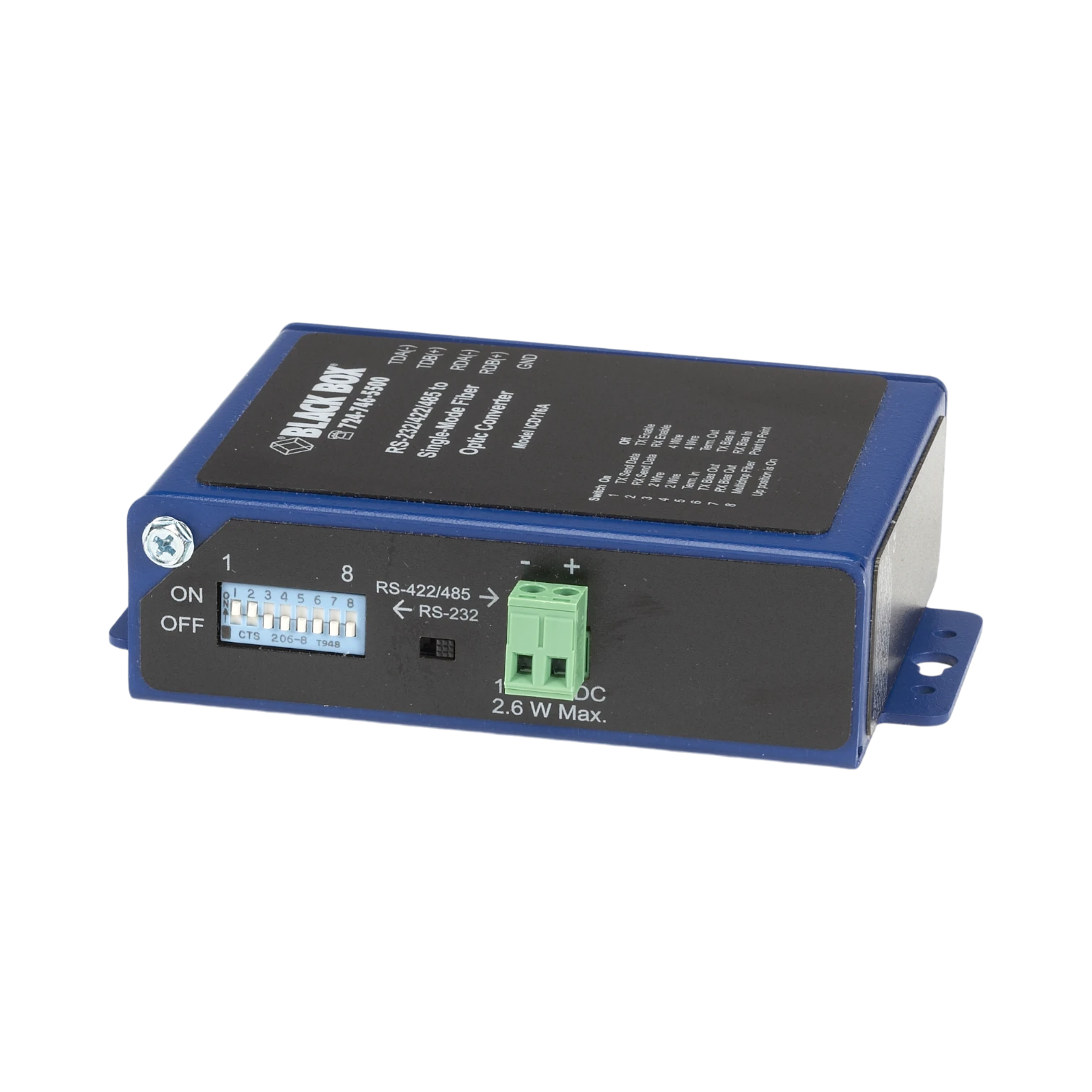

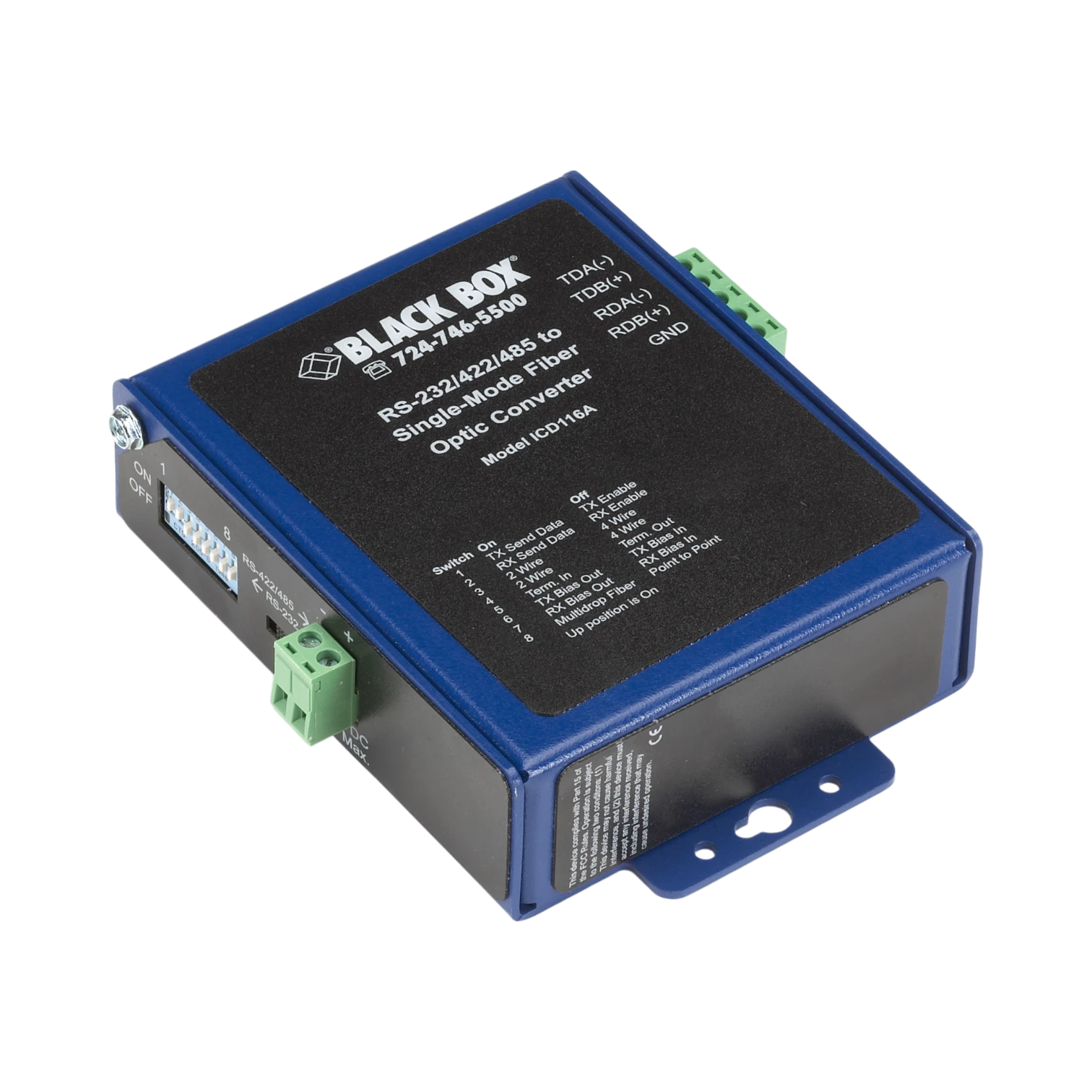

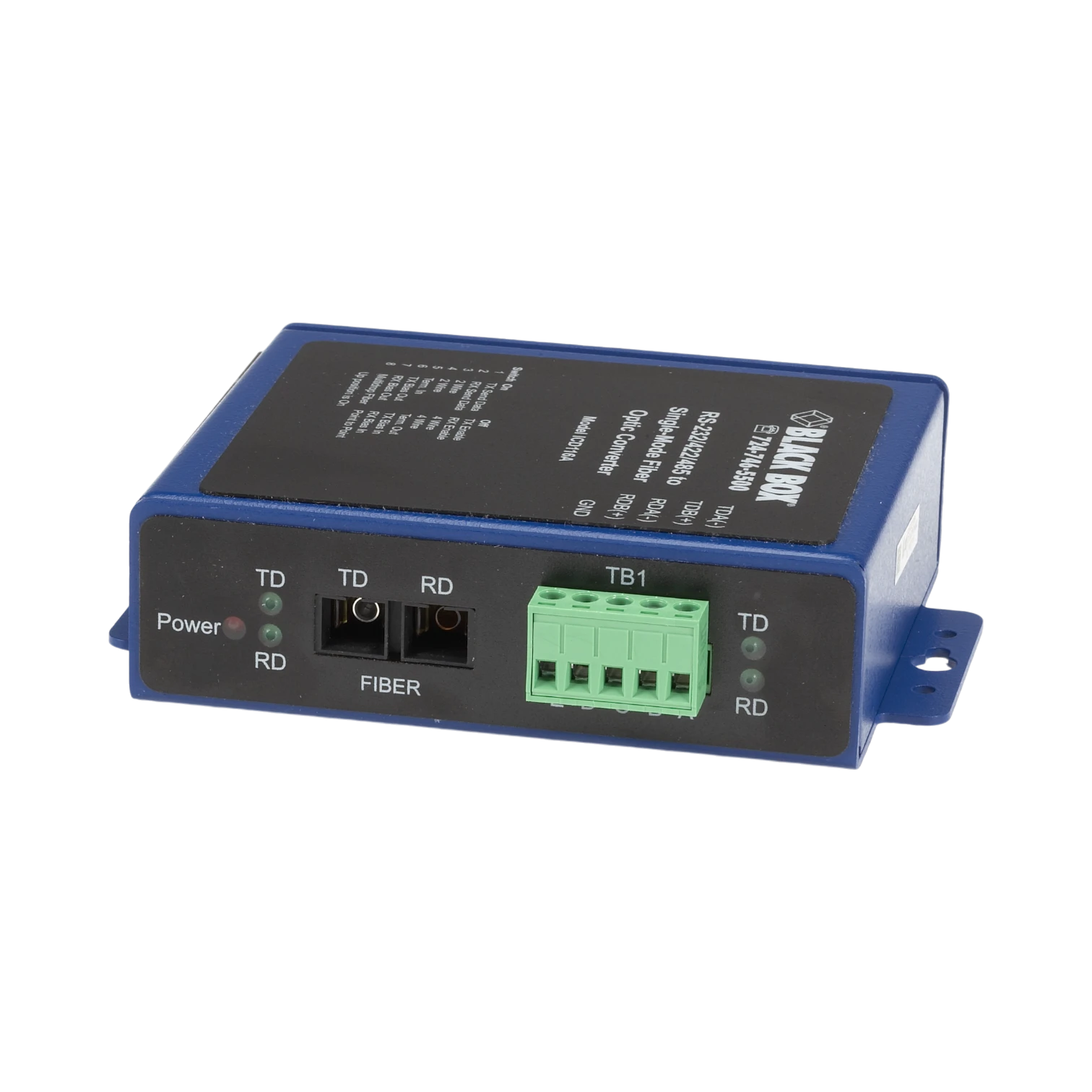

Black Box Async RS-232/422/485 Fiber Extender Singlemode SC

The Black Box Async RS-232/422/485 Fiber Extender is engineered for industrial environments where long-distance serial data transmission is crucial. Encased in a rugged IP30-rated metal enclosure, this extender supports data rates up to 115.2 kbps and offers a maximum transmission distance of 15 kilometers over singlemode fiber. Designed to withstand extreme temperatures from -30 to +185°F and resist shock and vibration, it ensures reliable performance in demanding conditions. Featuring 2-kV triple isolation, it safeguards your equipment and data from surges and ground loops, making it ideal for factory floors, utility applications, and military installations. The device supports both point-to-point and fiber ring configurations, allowing communication with up to 31 other units. Simple to configure with DIP switches and automatic data rate detection, it’s versatile enough for both RS-232 and RS-422/RS-485 modes. With IEC 61850-3 and IEEE 1613 approvals, this converter meets the stringent standards required for electrical substation installations, ensuring top-tier reliability and performance.

Highlights:

• Extends serial data up to 15 km over singlemode fiber
• Rugged IP30-rated metal case for industrial use
• Supports temperatures from -30 to +185°F
• 2-kV triple isolation protects data and equipment
• Compatible with RS-232, RS-422, and RS-485 modes
• Supports fiber ring communication with 31 units
• Meets IEC 61850-3 and IEEE 1613 standards
